74AUP1G79GV,125 - Nexperia

Description: 74AUP1G79 - Low-power D-type flip-flop; positive-edge trigger@en-us

Download 74AUP1G79GV,125 Model

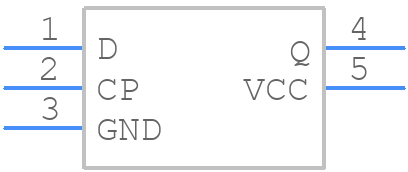

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74AUP1G79GV,125 - Nexperia PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT753
click to zoom
3D Models
74AUP1G79GV,125 - Nexperia  - 3D model - SOT23 (5-Pin) - SOT753
click to zoom

74AUP1G79GV,125 Details

  • Manufacturer Part Number:

    74AUP1G79GV,125

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Package Description:

    SOT-753, 5 PIN

  • Pin Count:

    5

  • Manufacturer Package Code:

    SOT753

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Family:

    AUP/ULP/V

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Logic IC Type:

    D FLIP-FLOP

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    1.5 mm

  • fmax-Min:

    510 MHz

74AUP1G79GV,125 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74AUP1G79GV,125 is 0.8 V to 3.6 V.
  • Yes, the 74AUP1G79GV,125 is suitable for high-frequency applications up to 100 MHz due to its low propagation delay and high bandwidth.
  • To ensure the 74AUP1G79GV,125 is properly powered, connect the VCC pin to a stable power supply, and decouple the power supply with a 100 nF capacitor to reduce noise and voltage spikes.
  • No, the 74AUP1G79GV,125 is not recommended for use in 5 V systems as it is designed to operate at a maximum voltage of 3.6 V. Using it in a 5 V system may cause damage to the device.
  • The 74AUP1G79GV,125 can sink or source a maximum current of 24 mA per output pin.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AUP1G79GV,125 Overview

Use the download button to access the 74AUP1G79GV,125 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AUP, or try a keyword search, such as FF/Latches

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
