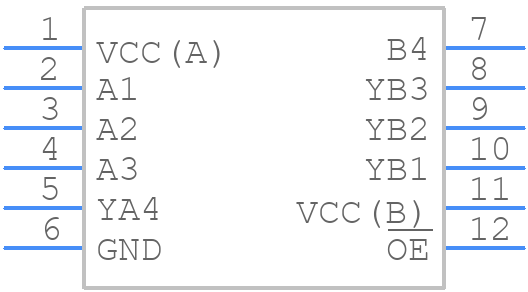

74AVC4T3144GU12X - Nexperia

74AVC4T3144GU12X Details

• Manufacturer Part Number:

  74AVC4T3144GU12X

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  QFN-12

• Pin Count:

  12

• Manufacturer Package Code:

  SOT1174-1

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Nexperia

• YTEOL:

  10

• Control Type:

  ENABLE LOW

• Count Direction:

  BIDIRECTIONAL

• Family:

  AVC

• JESD-30 Code:

  R-PQCC-N12

• JESD-609 Code:

  e4

• Length:

  2 mm

• Load Capacitance (CL):

  15 pF

• Logic IC Type:

  BUS DRIVER

• Max I(ol):

  0.012 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  4

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  12

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VQCCN

• Package Equivalence Code:

  LCC12,.07X.08,16

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, VERY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  0.07 mA

• Prop. Delay@Nom-Sup:

  12.7 ns

• Propagation Delay (tpd):

  14.5 ns

• Seated Height-Max:

  0.5 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  0.8 V

• Supply Voltage-Nom (Vsup):

  2.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.7 mm
