74AVCH2T45DC-Q100H - Nexperia

Description: 74AVCH2T45-Q100 - Dual-bit, dual-supply voltage level translator/transceiver; 3-state@en-us

Download 74AVCH2T45DC-Q100H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

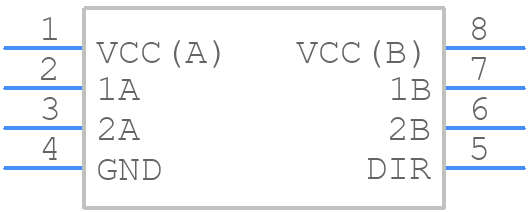

74AVCH2T45DC-Q100H - Nexperia - PCB symbol
click to zoom
PCB Footprints
74AVCH2T45DC-Q100H - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - VSSOP8
click to zoom
3D Models
74AVCH2T45DC-Q100H - Nexperia - 3D model - Small Outline Packages - VSSOP8
click to zoom

74AVCH2T45DC-Q100H Details

  • Manufacturer Part Number:

    74AVCH2T45DC-Q100H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • Logic IC Type:

    BUS TRANSCEIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AVCH2T45DC-Q100H Overview

Use the download button to access the 74AVCH2T45DC-Q100H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74AVC, or try a keyword search, such as Bus Driver/Transceivers
