74AXP2T3407GTX - Nexperia

Description: 74AXP2T3407 - Dual supply single buffer and single buffer with open-drain@en-us

Download 74AXP2T3407GTX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

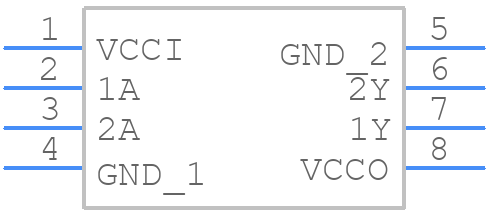

74AXP2T3407GTX - Nexperia - PCB symbol
click to zoom
PCB Footprints
74AXP2T3407GTX - Nexperia PCB footprint - Other - Other - SOT833-1
click to zoom
3D Models
74AXP2T3407GTX - Nexperia - 3D model - Other - SOT833-1
click to zoom

74AXP2T3407GTX Details

  • Manufacturer Part Number:

    74AXP2T3407GTX

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    XSON-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT833-1

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    AXP

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    1.95 mm

  • Logic IC Type:

    BUFFER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Inputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    225 ns

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max (Vsup):

    2.75 V

  • Supply Voltage-Min (Vsup):

    0.7 V

  • Supply Voltage-Nom (Vsup):

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1 mm

74AXP2T3407GTX Frequently Asked Questions (FAQs)

  • Nexperia provides a recommended PCB layout in their application note AN11244, which includes guidelines for signal routing, decoupling, and thermal management to ensure optimal performance and minimize signal integrity issues.
  • The 74AXP2T3407GTX has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good thermal conductivity by using a thermal via or a thermal pad on the PCB, and consider using a heat sink or thermal interface material if necessary.
  • While the datasheet doesn't specify a maximum operating frequency, Nexperia recommends an operating frequency of up to 100 MHz for this device. However, the actual frequency limit may depend on the specific application, PCB layout, and signal integrity considerations.
  • Yes, the 74AXP2T3407GTX is specified to operate from 1.65V to 3.6V, making it suitable for use in 3.3V systems. However, ensure that the input signals and output loads are within the recommended operating conditions to maintain signal integrity and prevent damage to the device.
  • The 74AXP2T3407GTX has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment to prevent damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74AXP2T3407GTX Overview

Use the download button to access the 74AXP2T3407GTX schematic symbol, PCB footprint, and 3D model.
