74CB3Q3257BQX - Nexperia

Description: 74CB3Q3257 - 4-bit 1-of-2 FET multiplexer/demultiplexer with charge pump@en-us

Download 74CB3Q3257BQX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

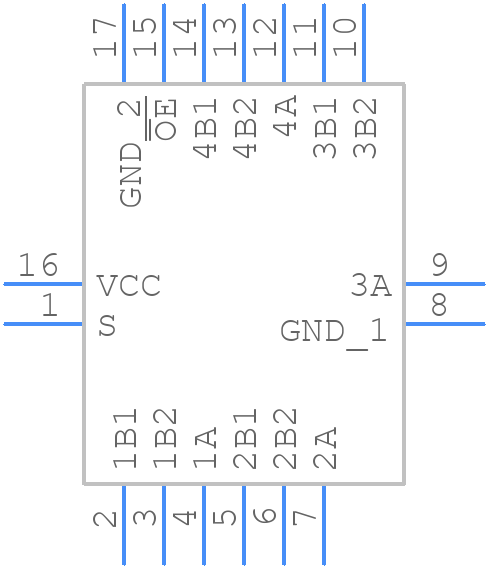

74CB3Q3257BQX - Nexperia - PCB symbol
click to zoom
PCB Footprints
74CB3Q3257BQX - Nexperia PCB footprint - Other - Other - 74CB3Q3257BQX-3
click to zoom
3D Models
74CB3Q3257BQX - Nexperia - 3D model - Other - 74CB3Q3257BQX-3
click to zoom

74CB3Q3257BQX Details

  • Manufacturer Part Number:

    74CB3Q3257BQX

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    DHVQFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT763-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.25

  • Control Type:

    ENABLE LOW

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    CB3Q/3VH/3C/2B

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3.5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS EXCHANGER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    4

  • Number of Ports:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.1X.14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.6 mA

  • Prop. Delay@Nom-Sup:

    0.2 ns

  • Propagation Delay (tpd):

    0.2 ns

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

74CB3Q3257BQX Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the 74CB3Q3257BQX is a QFN24 package with a 4x4mm body size and 0.5mm pitch. The datasheet provides a recommended land pattern and solder mask design guidelines.
  • The 74CB3Q3257BQX requires a specific power sequencing to ensure proper operation. The VCC pin should be powered up before the VCCA pin, and the VCCA pin should be powered down before the VCC pin. A power sequencing circuit or a dedicated power management IC can be used to ensure correct power sequencing.
  • The maximum operating frequency of the 74CB3Q3257BQX is 100 MHz. However, the actual operating frequency may be limited by the system design, PCB layout, and signal integrity considerations.
  • To minimize power consumption in the 74CB3Q3257BQX, use the lowest possible supply voltage, minimize the clock frequency, and use the power-down mode when the device is not in use. Additionally, using a low-power mode or a dynamic voltage and frequency scaling (DVFS) technique can also help reduce power consumption.
  • The 74CB3Q3257BQX has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve thermal conductivity between the package and the PCB. Additionally, a heat sink or a thermal management system can be used to further reduce the junction temperature.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74CB3Q3257BQX Overview

Use the download button to access the 74CB3Q3257BQX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74CB3, or try a keyword search, such as Bus Driver/Transceivers

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
