74CBTLV3126PW-Q10J - Nexperia

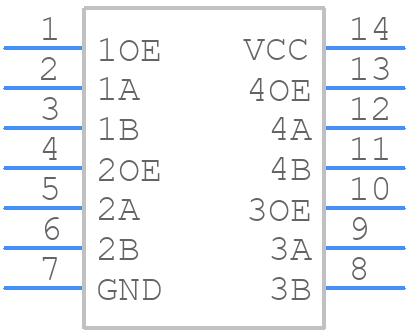

74CBTLV3126PW-Q10J Details

• Manufacturer Part Number:

  74CBTLV3126PW-Q10J

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  4.40 MM, PLASTIC, MO-153, SOT402-1, TSSOP-14

• Pin Count:

  14

• Manufacturer Package Code:

  SOT402-1

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Nexperia

• YTEOL:

  6.25

• Control Type:

  ENABLE HIGH

• Count Direction:

  UNIDIRECTIONAL

• Family:

  CBTLV/3B

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e4

• Length:

  5 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUS DRIVER

• Moisture Sensitivity Level:

  1

• Number of Bits:

  1

• Number of Functions:

  4

• Number of Ports:

  2

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR, 13 INCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  0.05 mA

• Prop. Delay@Nom-Sup:

  0.31 ns

• Propagation Delay (tpd):

  0.31 ns

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  NICKEL PALLADIUM GOLD SILVER

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
