74CBTLVD3245PW,118 - Nexperia

Description: 74CBTLVD3245 - 8-bit level-shifting bus switch with output enable@en-us

Download 74CBTLVD3245PW,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

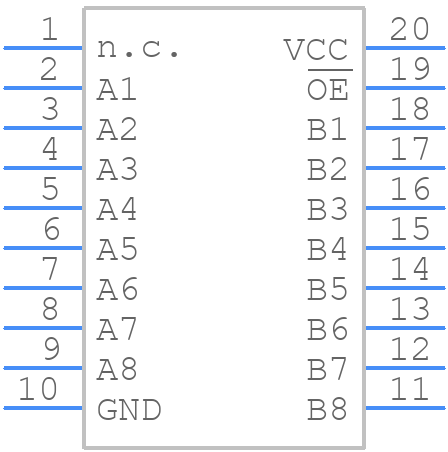

Symbol
74CBTLVD3245PW,118 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74CBTLVD3245PW,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT360-1
click to zoom
3D Models
74CBTLVD3245PW,118 - Nexperia - 3D model - Small Outline Packages - SOT360-1
click to zoom

74CBTLVD3245PW,118 Details

  • Manufacturer Part Number:

    74CBTLVD3245PW,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP2

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT360-1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nexperia

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

74CBTLVD3245PW,118 Frequently Asked Questions (FAQs)

  • Nexperia provides a recommended PCB footprint in their application note AN11173, which includes a land pattern and solder mask design guide.
  • The 74CBTLVD3245PW,118 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap or mat.
  • The 74CBTLVD3245PW,118 is rated for operation from -40°C to +125°C, but it's recommended to derate the device for reliable operation above 85°C.
  • The 74CBTLVD3245PW,118 is a surface-mount device and can be susceptible to vibration-induced solder joint failure. It's recommended to use a robust soldering process and consider additional mechanical support or potting for high-vibration applications.
  • The optimal decoupling capacitor value depends on the specific application and PCB layout. A general rule of thumb is to use a 0.1 μF to 1 μF ceramic capacitor with a voltage rating of at least 2.5 times the supply voltage, placed as close as possible to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74CBTLVD3245PW,118 Overview

Use the download button to access the 74CBTLVD3245PW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74CBT, or try a keyword search, such as Other Signal Circuits

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
