74F1071SCX - onsemi

Description: 18-Bit Undershoot/Overshoot Clamp and ESD Protection Device

Download 74F1071SCX Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 74F1071SCX model

Email notifications will be applied after download.

Send part feedback

Symbol

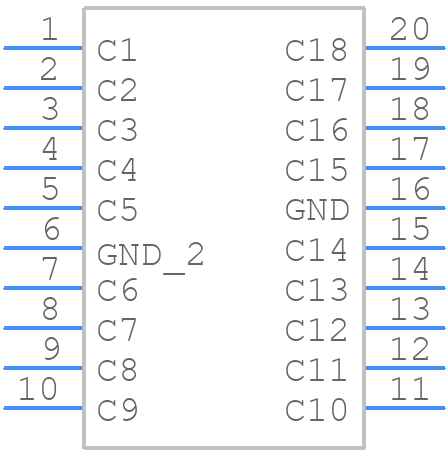

74F1071SCX - onsemi - PCB symbol

PCB Footprints

74F1071SCX - onsemi PCB footprint - Other - Other - SOIC127P1032X265-20N

3D Models

74F1071SCX - onsemi - 3D model - Other - SOIC127P1032X265-20N

Datasheet
Stock & Prices Price & Stock for 74F1071SCX
Part Number 74F1071SCX
Manufacturer onsemi
Pin Count 20
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - SOIC127P1032X265-20N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

74F1071SCX Details

Manufacturer Part Number:
74F1071SCX
Manufacturer:
onsemi

Trust Checks

System Verified

74F1071SCX Overview

Use the download button to access the 74F1071SCX schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 74F10, or try a keyword search, such as Bus Terminators
