74FCT162501ATPVG - Renesas Electronics

74FCT162501ATPVG Details

• Manufacturer Part Number:

  74FCT162501ATPVG

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

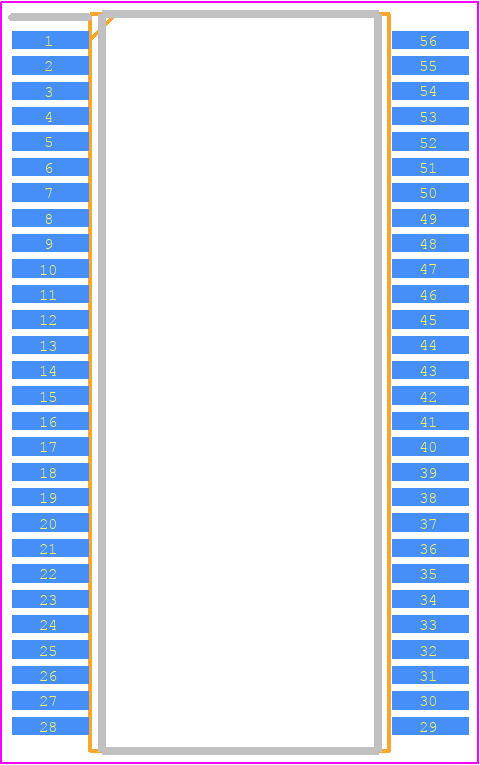

• Part Package Code:

  SSOP

• Package Description:

  SSOP-56

• Pin Count:

  56

• Manufacturer Package Code:

  PVG56

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Additional Feature:

  WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION

• Control Type:

  INDEPENDENT CONTROL

• Count Direction:

  BIDIRECTIONAL

• Family:

  FCT

• JESD-30 Code:

  R-PDSO-G56

• JESD-609 Code:

  e3

• Length:

  18.415 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  REGISTERED BUS TRANSCEIVER

• Max I(ol):

  0.024 A

• Moisture Sensitivity Level:

  1

• Number of Bits:

  18

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  56

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP56,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  20.8 mA

• Prop. Delay@Nom-Sup:

  5.6 ns

• Propagation Delay (tpd):

  5.6 ns

• Seated Height-Max:

  2.794 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Trigger Type:

  POSITIVE EDGE

• Width:

  7.493 mm
