74FCT162511CTPVG8 - Renesas Electronics

Description: The 74FCT162511T 16-bit high-speed, low-power registered/latched transceiver with parity combines D-type latches and D-type flip-flops to allow data flow in transparent, latched, or clocked modes. The device has a parity generator/ checker in the A-to-B direction and a parity checker in the B-to-A direction. The 74FCT162511T operates at -40C to +85C

Download 74FCT162511CTPVG8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
74FCT162511CTPVG8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

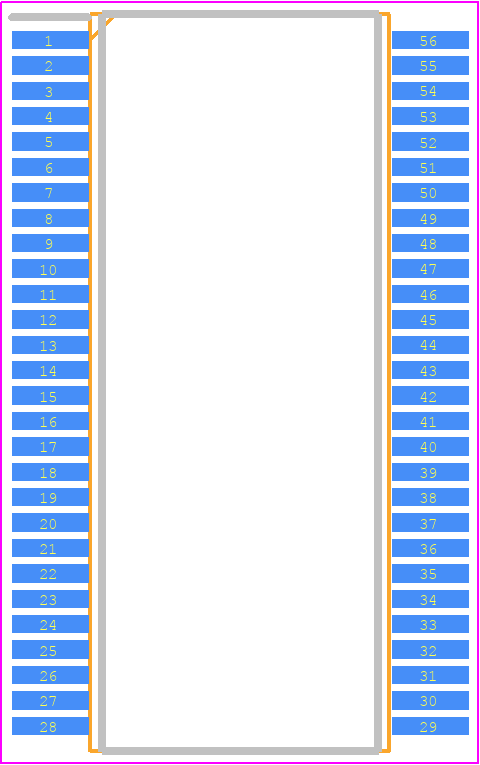

74FCT162511CTPVG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PVG56
click to zoom
3D Models
74FCT162511CTPVG8 - Renesas Electronics - 3D model - Small Outline Packages - PVG56
click to zoom

74FCT162511CTPVG8 Details

  • Manufacturer Part Number:

    74FCT162511CTPVG8

  • Manufacturer:

    Renesas Electronics Corporation

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74FCT162511CTPVG8 Overview

Use the download button to access the 74FCT162511CTPVG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74FCT, or try a keyword search, such as Bus Driver/Transceivers
