74FCT16374ATPVG - Renesas Electronics

Description: The 74FCT16374T 16-bit high-speed, low-power edge-triggered D-type register is ideal for use as buffer registers for data synchronization and storage and can operate as two 8-bit registers or one 16-bit register with common clock. The 74FCT16374T is ideally suited for driving high-capacitance loads and low-impedance backplanes. The 74FCT16374T operates at -40C to +85C

Download 74FCT16374ATPVG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

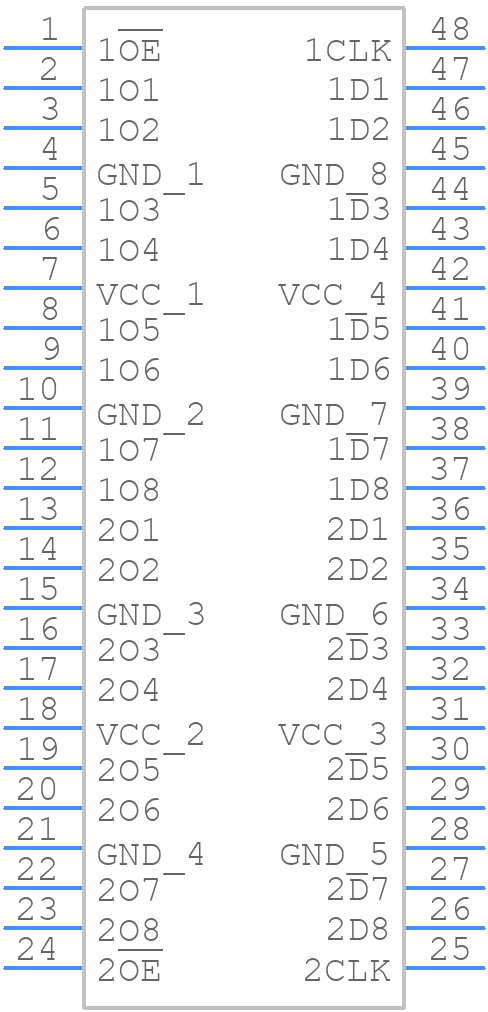

74FCT16374ATPVG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
74FCT16374ATPVG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 74FCT162245CTPVG
click to zoom
3D Models
74FCT16374ATPVG - Renesas Electronics - 3D model - Small Outline Packages - 74FCT162245CTPVG
click to zoom

74FCT16374ATPVG Details

  • Manufacturer Part Number:

    74FCT16374ATPVG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PVG48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

74FCT16374ATPVG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74FCT16374ATPVG is 4.5V to 5.5V.
  • The 74FCT16374ATPVG has a thermal pad on the bottom of the package, which should be connected to a thermal plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
  • The maximum clock frequency supported by the 74FCT16374ATPVG is 100 MHz.
  • To ensure signal integrity, use controlled impedance traces on the PCB, keep signal lines short and away from noise sources, and use termination resistors as necessary. Additionally, consider using a signal integrity analysis tool to simulate and optimize the design.
  • While the 74FCT16374ATPVG is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the output voltage levels may not meet the required specifications, and the device may not function correctly. It is recommended to use a level translator or a voltage regulator to ensure proper operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74FCT16374ATPVG Overview

Use the download button to access the 74FCT16374ATPVG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74FCT, or try a keyword search, such as Bus Driver/Transceivers
