74FCT621ATSOG8 - Renesas Electronics

Description: The 74FCT621T is an octal transceiver with non-inverting Open- Drain bus compatible outputs in both send and receive directions. The B bus outputs are capable of sinking 64mA providing very good capacitive drive characteristics. The 74FCT621A is designed for asynchronous two-way communication between data buses. The 74FCT621A operates at -40C to +85C

Download 74FCT621ATSOG8 Model

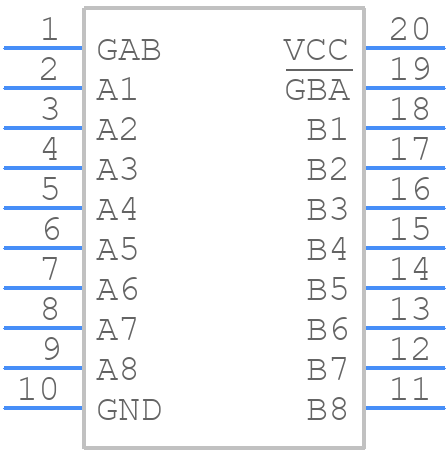

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74FCT621ATSOG8 - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - psg20-1
click to zoom
3D Models
74FCT621ATSOG8 - Renesas Electronics  - 3D model - Small Outline Packages - psg20-1
click to zoom

74FCT621ATSOG8 Details

  • Manufacturer Part Number:

    74FCT621ATSOG8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    20

  • Manufacturer Package Code:

    PSG20

  • Country Of Origin:

    Philippines, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Additional Feature:

    WITH INDEPENDENT OUTPUT ENABLE FOR EACH DIRECTION

  • Control Type:

    INDEPENDENT CONTROL

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    FCT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Logic IC Type:

    BUS TRANSCEIVER

  • Max I(ol):

    0.064 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    12 ns

  • Propagation Delay (tpd):

    12 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

74FCT621ATSOG8 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74FCT621ATSOG8 is 4.5V to 5.5V, with a typical voltage of 5V.
  • The 74FCT621ATSOG8 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane or a heat sink to dissipate heat. Additionally, ensure good airflow around the device and avoid blocking the thermal pad.
  • The 74FCT621ATSOG8 supports clock frequencies up to 100 MHz, but the actual frequency limit may depend on the system design, layout, and loading conditions.
  • To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and avoid signal reflections. Also, use termination resistors and/or series resistors to reduce signal ringing and overshoot.
  • While the 74FCT621ATSOG8 is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the device's performance and functionality may be degraded, and the output voltage levels may not meet the required specifications.
