74FCT807BTSOGI - Renesas Electronics

Description: The FCT807T clock driver is built using advanced dual metal CMOS technology. This low skew clock driver features 1:10 fanout, providing minimal loading on the preceding drivers. The FCT807T offers low capacitance inputs with hysteresis for improved noise margins. TTL level outputs and multiple power and grounds reduce noise. The device also features -32/48mA drive capability for driving low impedance traces.

Download 74FCT807BTSOGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

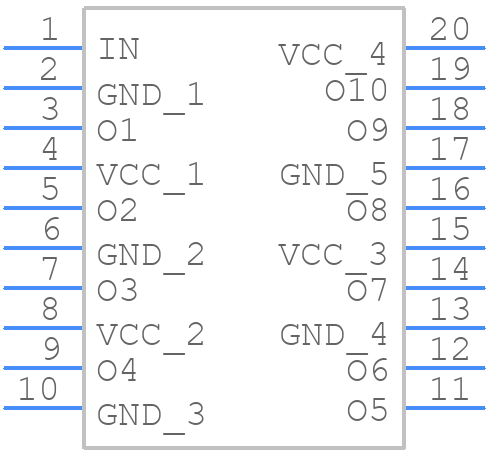

74FCT807BTSOGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
74FCT807BTSOGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PSG20
click to zoom
3D Models
74FCT807BTSOGI - Renesas Electronics - 3D model - Small Outline Packages - PSG20
click to zoom

74FCT807BTSOGI Details

  • Manufacturer Part Number:

    74FCT807BTSOGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PSG20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Family:

    FCT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.048 A

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    31.3 mA

  • Prop. Delay@Nom-Sup:

    4 ns

  • Propagation Delay (tpd):

    4 ns

  • Same Edge Skew-Max (tskwd):

    0.6 ns

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

74FCT807BTSOGI Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74FCT807BTSOGI is 4.5V to 5.5V.
  • To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use termination resistors as needed. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
  • While the 74FCT807BTSOGI is specified for 5V operation, it can be used in a 3.3V system with some limitations. However, the output voltage will be reduced, and the device may not meet all the specified timing parameters. Consult the datasheet and application notes for more information.
  • To ensure proper operation, power up the 74FCT807BTSOGI after the system's power rails have stabilized. Use a power sequencing controller or a simple RC circuit to delay the power-up of the 74FCT807BTSOGI until the system is ready.
  • The maximum clock frequency supported by the 74FCT807BTSOGI is 100 MHz. However, the actual frequency limit may be lower depending on the system's noise margin, signal integrity, and other factors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74FCT807BTSOGI Overview

Use the download button to access the 74FCT807BTSOGI schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74FCT, or try a keyword search, such as Clock Drivers
