74HC08D(BJ) - Toshiba

Description: AND Gate 4-Element 2-IN CMOS 14-Pin SOIC T/R

Download 74HC08D(BJ) Model

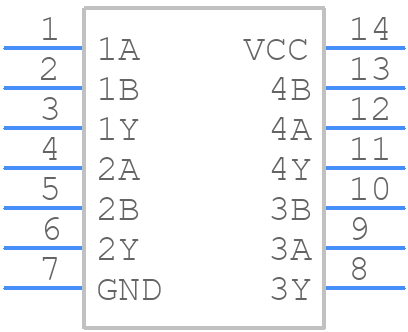

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC08D(BJ) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - soic 14
click to zoom
3D Models
74HC08D(BJ) - Toshiba  - 3D model - Small Outline Packages - soic 14
click to zoom

74HC08D(BJ) Details

  • Manufacturer Part Number:

    74HC08D(BJ)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.35

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    AND GATE

  • Max I(ol):

    0.0052 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    27 ns

  • Propagation Delay (tpd):

    135 ns

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

74HC08D(BJ) Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74HC08D(BJ) is typically 100 MHz, but it can vary depending on the specific application and operating conditions.
  • The 74HC08D(BJ) requires a single power supply voltage (VCC) of 2.0 to 5.5 volts, and it's recommended to use a decoupling capacitor (e.g., 0.1 μF) between VCC and GND to reduce noise and ensure stable operation.
  • The input voltage threshold for the 74HC08D(BJ) is typically around 0.8V for a logic '1' and 0.2V for a logic '0', but it's recommended to consult the datasheet for specific voltage threshold values.
  • Yes, the 74HC08D(BJ) can operate in a 3.3V system, but ensure that the input voltage levels are within the recommended range (0.8V to 3.3V) to maintain proper logic operation.
  • Unused inputs on the 74HC08D(BJ) should be tied to a valid logic level (either VCC or GND) to prevent floating inputs and ensure proper operation.
