74HC08N - Nexperia

Description: Quad 2i/p AND gate,74HC08N DIP14 2-6V NXP PC74HC08N, Quad 2-Input AND Logic Gate, 2 → 6 V, 14-Pin PDIP

Download 74HC08N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
74HC08N - Nexperia - PCB symbol
click to zoom
PCB Footprints

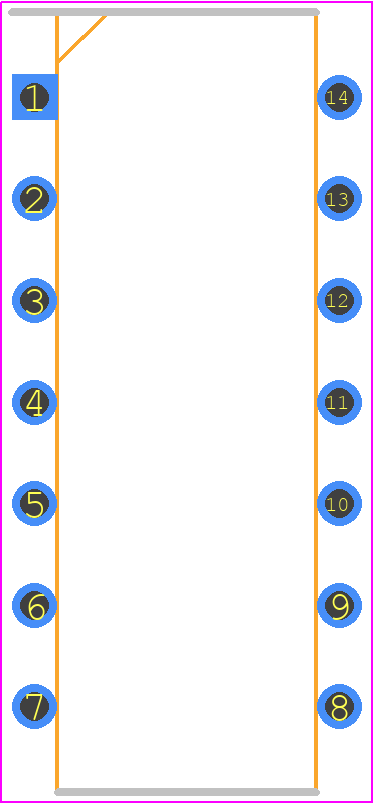

74HC08N - Nexperia PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - SOT27-1 (DIP14)
click to zoom
3D Models
74HC08N - Nexperia - 3D model - Dual-In-Line Packages - SOT27-1 (DIP14)
click to zoom

74HC08N Details

  • Manufacturer Part Number:

    74HC08N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.025 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    AND GATE

  • Max I(ol):

    0.0052 A

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Prop. Delay@Nom-Sup:

    27 ns

  • Propagation Delay (tpd):

    135 ns

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    4.2 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

74HC08N Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the 74HC08N is typically around 100 MHz, but this can vary depending on the specific application, supply voltage, and output load.
  • To ensure proper operation, the 74HC08N should be powered from a stable, low-noise power supply with a decoupling capacitor (e.g., 100 nF) placed close to the device. Additionally, the power supply voltage should be within the recommended range of 2.0 V to 7.0 V.
  • The input voltage threshold for the 74HC08N is typically around 1.5 V to 3.5 V, depending on the supply voltage. This means that an input voltage above 1.5 V is considered a logic high, and an input voltage below 3.5 V is considered a logic low.
  • Yes, the 74HC08N can be used with a 5 V microcontroller and a 3.3 V peripheral, as it is a 5 V-tolerant device. However, it's essential to ensure that the output voltage of the 74HC08N is within the input voltage range of the 3.3 V peripheral.
  • The 74HC08N is a relatively low-power device, but it's still important to ensure proper heat dissipation. This can be achieved by providing adequate airflow, using a heat sink if necessary, and avoiding high ambient temperatures.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC08N Overview

Use the download button to access the 74HC08N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC0, or try a keyword search, such as Gates

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
