74HC11P-E - Renesas Electronics

Description: Triple 3-input AND Gates 2 to 6 V,1 µA max,–0.5 to 7.0 V,±20 mA,500 mW –65 to +150 °C

Download 74HC11P-E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 74HC11P-E model

Email notifications will be applied after download.

Send part feedback

Symbol

74HC11P-E - Renesas Electronics - PCB symbol

PCB Footprints

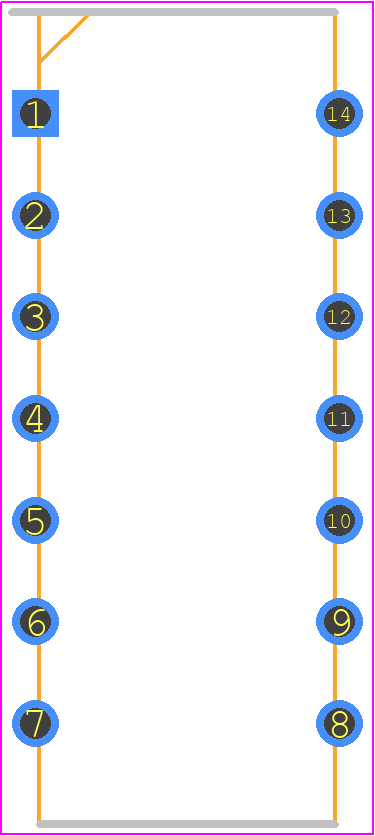

74HC11P-E - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PRDP0014AB-B_2025

3D Models

74HC11P-E - Renesas Electronics - 3D model - Dual-In-Line Packages - PRDP0014AB-B_2025

Datasheet Download Datasheet
Stock & Prices Price & Stock for 74HC11P-E
Part Number 74HC11P-E
Manufacturer Renesas Electronics
Pin Count 14
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - PRDP0014AB-B_2025
Released Date Nov 19, 2025
Last Modified Date Nov 19, 2025 2:16 PM UTC
Pinout / Pin List Click Here (Member Only)

74HC11P-E Details

Manufacturer Part Number:
74HC11P-E
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

74HC11P-E Overview

Use the download button to access the 74HC11P-E schematic symbol, PCB footprint, and 3D model.
