Part Image

74HC125D - Toshiba

Description: Quad Bus Buffer, Non-Inverted 3-State Outputs CMOS Digital Integrated Circuits Silicon Monolithic : SOIC14

Download 74HC125D Model

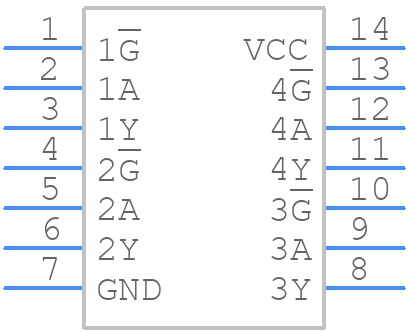

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC125D - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOIC14
click to zoom
3D Models
74HC125D - Toshiba  - 3D model - Small Outline Packages - SOIC14
click to zoom

74HC125D Details

  • Manufacturer Part Number:

    74HC125D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-14

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2016-05-25

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.65 mm

  • Logic IC Type:

    BUS DRIVER

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Propagation Delay (tpd):

    195 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

74HC125D Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the 74HC125D is typically around 100 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure proper power supply, connect VCC to a stable 2.0-6.0V power source, and GND to a reliable ground connection. Also, decouple the power supply with a 0.1uF capacitor to reduce noise and ensure stable operation.
  • The input voltage threshold for the 74HC125D is typically around 0.8V for a logic high and 0.2V for a logic low, but it can vary depending on the specific application and operating conditions.
  • Yes, the 74HC125D can be used in a 3.3V system, but ensure that the input signals are within the recommended voltage range (0.8V to VCC) to maintain proper operation.
  • Unused inputs on the 74HC125D should be tied to a valid logic level (either VCC or GND) to prevent floating inputs and ensure proper operation.
