74HC137DB,112 - Nexperia

Description: 74HC137 - 3-to-8 line decoder, demultiplexer with address latches; inverting@en-us

Download 74HC137DB,112 Model

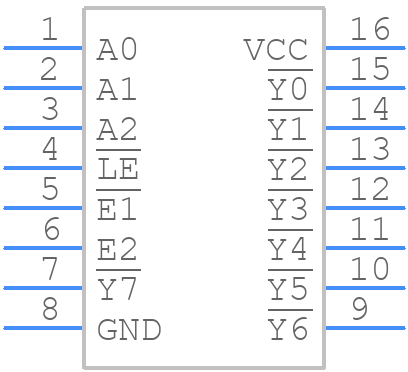

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC137DB,112 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT338-1
click to zoom
3D Models
74HC137DB,112 - Nexperia  - 3D model - Small Outline Packages - SOT338-1
click to zoom

74HC137DB,112 Details

  • Manufacturer Part Number:

    74HC137DB,112

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP1

  • Package Description:

    5.30 MM, PLASTIC, MO-150, SOT-338-1, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT338-1

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    ADDRESS LATCHES

  • Family:

    HC/UH

  • Input Conditioning:

    LATCHED

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    6.2 mm

  • Logic IC Type:

    3-LINE TO 8-LINE DECODER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    285 ns

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC137DB,112 Overview

Use the download button to access the 74HC137DB,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC1, or try a keyword search, such as Decoder/Drivers
