74HC175D - Toshiba

Description: (1) High speed: fMAX = 63 MHz (typ.) at VCC = 5 V (2) Low power dissipation: ICC = 4.0 µA (max) at T a = 25  (3) Balanced propagation delays: tPLH ≈ tPHL (4) Wide operating voltage range: VCC(opr) = 2.0 V to 6.0 V

Download 74HC175D Model

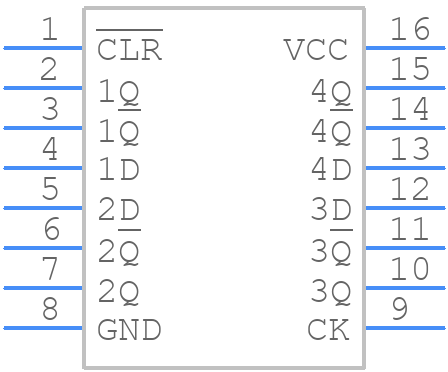

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC175D - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 74HC175D
click to zoom
3D Models
74HC175D - Toshiba  - 3D model - Small Outline Packages - 74HC175D
click to zoom

74HC175D Details

  • Manufacturer Part Number:

    74HC175D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2016-05-24

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Logic IC Type:

    D FLIP-FLOP

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    210 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    24 MHz

74HC175D Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HC175D is 2V to 6V, with a typical voltage of 5V.
  • Unused inputs on the 74HC175D should be tied to VCC or GND to prevent floating inputs and ensure proper device operation.
  • The maximum clock frequency that the 74HC175D can handle is 25 MHz, but this can vary depending on the operating voltage and load conditions.
  • Yes, the 74HC175D can be used in a 3.3V system, but the output voltage will be limited to 3.3V, and the device may not be able to drive heavy loads.
  • To ensure proper power-on and power-off, the 74HC175D should be powered on and off slowly, with a rise and fall time of at least 10 ms, to prevent damage to the device.
