74HC194D,652 - Nexperia

Description: 74HC(T)194 - 4-bit bidirectional universal shift register@en-us

Download 74HC194D,652 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

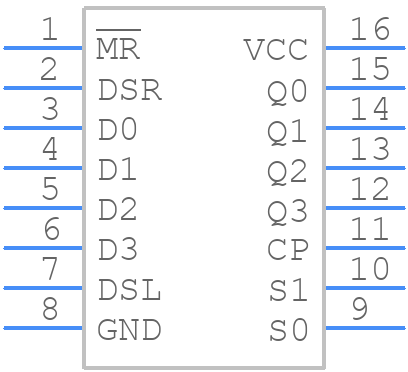

74HC194D,652 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HC194D,652 - Nexperia PCB footprint - Other - Other - 74HC194D,652-2
click to zoom
3D Models
74HC194D,652 - Nexperia - 3D model - Other - 74HC194D,652-2
click to zoom

74HC194D,652 Details

  • Manufacturer Part Number:

    74HC194D,652

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOP

  • Package Description:

    MINI, PLASTIC, SO-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT109-1

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    1993-11-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    HOLD MODE

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    PARALLEL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    220 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    20 MHz

74HC194D,652 Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the 74HC194D,652 is 25 MHz, but it can be affected by factors such as supply voltage, temperature, and capacitive loading. It's recommended to check the timing diagrams and clock frequency limitations in the datasheet.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, reducing power consumption, and using a thermally conductive material for the PCB. Additionally, the device should be operated within the recommended temperature range of -40°C to +125°C.
  • The recommended power-on sequence for the 74HC194D,652 is to apply the power supply voltage (VCC) before applying the clock signal (CLK). This ensures that the internal logic is properly initialized and prevents any potential latch-up or malfunction.
  • The asynchronous reset input (R) on the 74HC194D,652 should be driven low to reset the device. It's essential to ensure that the reset signal is properly synchronized with the clock signal to avoid any potential metastability issues.
  • The maximum capacitive load that can be driven by the 74HC194D,652 is 50 pF. Exceeding this limit may affect the device's performance, increase power consumption, and reduce the maximum clock frequency.
