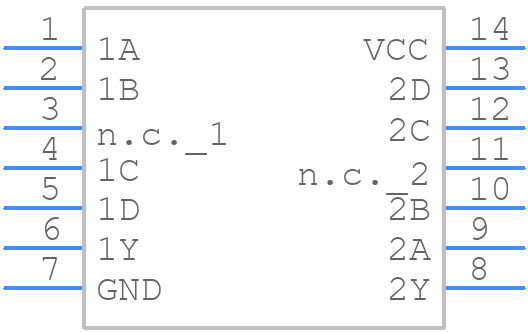

74HC20PW,112 - Nexperia

74HC20PW,112 Details

• Manufacturer Part Number:

  74HC20PW,112

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-14

• Pin Count:

  14

• Manufacturer Package Code:

  SOT402-1

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1995-11-01

• Manufacturer:

  Nexperia

• YTEOL:

  0

• Family:

  HC/UH

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e4

• Length:

  5 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  NAND GATE

• Max I(ol):

  0.0052 A

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Inputs:

  4

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP14,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  0.04 mA

• Prop. Delay@Nom-Sup:

  27 ns

• Propagation Delay (tpd):

  135 ns

• Schmitt Trigger:

  NO

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm
