74HC244D - Nexperia

Description: NEXPERIA - 74HC244D - IC, 74HC CMOS, SMD, 74HC244, SOIC20

Download 74HC244D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

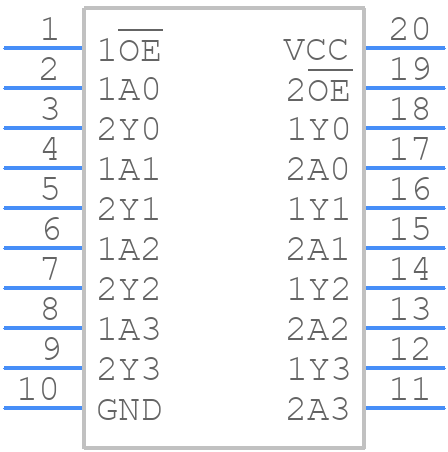

74HC244D - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HC244D - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - NXP SOT163-1
click to zoom
3D Models
74HC244D - Nexperia - 3D model - Small Outline Packages - NXP SOT163-1
click to zoom

74HC244D Details

  • Manufacturer Part Number:

    74HC244D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-20

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1991-06-27

  • Manufacturer:

    Nexperia

  • YTEOL:

    5.35

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.0078 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    2

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    70 mA

  • Propagation Delay (tpd):

    165 ns

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm
