74HC368PWJ - Nexperia

Description: 74HC368; 74HCT368 - Hex buffer/line driver; 3-state; inverting@en-us

Download 74HC368PWJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

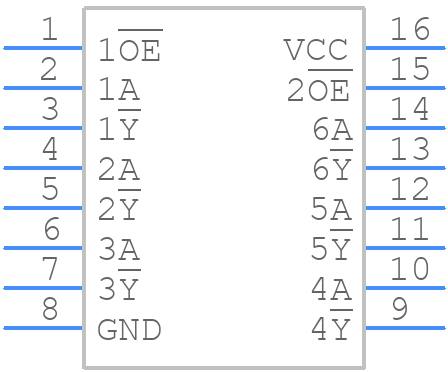

74HC368PWJ - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HC368PWJ - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT403-1*8
click to zoom
3D Models
74HC368PWJ - Nexperia - 3D model - Small Outline Packages - SOT403-1*8
click to zoom

74HC368PWJ Details

  • Manufacturer Part Number:

    74HC368PWJ

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC368PWJ Overview

Use the download button to access the 74HC368PWJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC3, or try a keyword search, such as Bus Driver/Transceivers
