74HC4050D(BJ) - Toshiba

Description: Buffer/Converter 6-CH Non-Inverting CMOS 16-Pin SOIC

Download 74HC4050D(BJ) Model

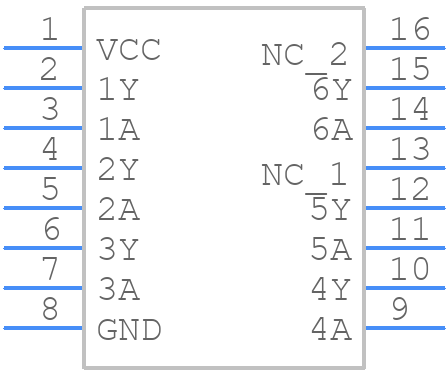

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC4050D(BJ) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16-
click to zoom
3D Models
74HC4050D(BJ) - Toshiba  - 3D model - Small Outline Packages - SOIC16-
click to zoom

74HC4050D(BJ) Details

  • Manufacturer Part Number:

    74HC4050D(BJ)

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.2 mm

  • Load Capacitance (CL):

    150 pF

  • Logic IC Type:

    BUFFER

  • Max I(ol):

    0.0078 A

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    35 ns

  • Propagation Delay (tpd):

    175 ns

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

74HC4050D(BJ) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HC4050D(BJ) is 2.0 V to 6.0 V.
  • Yes, the 74HC4050D(BJ) is compatible with both 5V and 3.3V systems, making it a versatile component for various applications.
  • The maximum clock frequency that the 74HC4050D(BJ) can handle is 25 MHz.
  • No, the 74HC4050D(BJ) does not have built-in pull-up resistors. External pull-up resistors are required for proper operation.
  • While the 74HC4050D(BJ) can operate at high frequencies, it is not optimized for high-speed applications. For high-speed applications, consider using a faster logic family, such as the 74AHC or 74VHC series.
