74HC4050D - Nexperia

Description: 74HC4050D, 6-Bit Buffer, Converter, HC, Non-Inverting 2 to 6V 16-Pin SOIC

Download 74HC4050D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

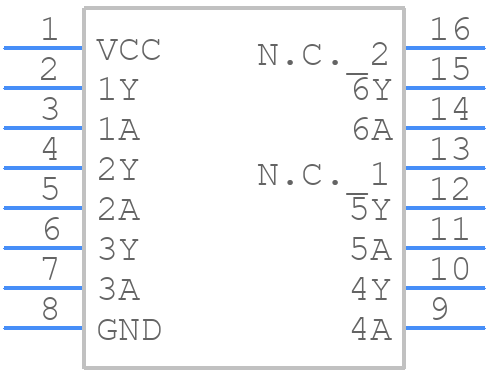

74HC4050D - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HC4050D - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SO16 (SOT109-1)
click to zoom
3D Models
74HC4050D - Nexperia - 3D model - Small Outline Packages - SO16 (SOT109-1)
click to zoom

74HC4050D Details

  • Manufacturer Part Number:

    74HC4050D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1990-12-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    5.35

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUFFER

  • Max I(ol):

    0.0052 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Propagation Delay (tpd):

    130 ns

  • Schmitt Trigger:

    NO

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

74HC4050D Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74HC4050D is typically around 30-40 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to check the device's propagation delay and transition time to determine the maximum frequency for a specific design.
  • The output enable (OE) pin is active-low, meaning that the outputs are enabled when OE is low ( Logic 0) and disabled when OE is high (Logic 1). Make sure to connect OE to a valid logic level or use a pull-up/pull-down resistor to ensure proper operation.
  • A simple POR circuit can be implemented using a resistor, capacitor, and diode. The capacitor should be connected between VCC and GND, and the resistor and diode should be connected in series between VCC and the reset pin. This circuit ensures that the device is properly reset during power-on.
  • The 74HC4050D is a CMOS device that operates from 2.0 to 6.0 V. However, it's recommended to use it in a 3.3V system or lower to ensure optimal performance and minimize power consumption. If you must use it in a 5V system, make sure to check the device's electrical characteristics and ensure that it meets your design requirements.
  • To reduce power consumption, use the lowest possible supply voltage, minimize the clock frequency, and use the output enable (OE) pin to disable the outputs when not in use. Additionally, consider using a lower-power version of the device, such as the 74AHC4050D or 74LVC4050D, if possible.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC4050D Overview

Use the download button to access the 74HC4050D schematic symbol, PCB footprint, and 3D model.
