74HC4050PW,112 - Nexperia

Description: 74HC4050 - Hex non-inverting HIGH-to-LOW level shifter@en-us

Download 74HC4050PW,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

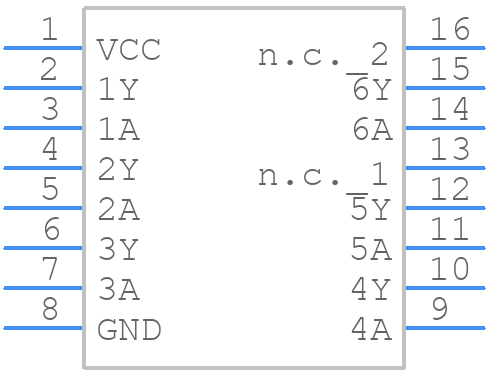

74HC4050PW,112 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HC4050PW,112 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT403-1
click to zoom
3D Models
74HC4050PW,112 - Nexperia - 3D model - Small Outline Packages - SOT403-1
click to zoom

74HC4050PW,112 Details

  • Manufacturer Part Number:

    74HC4050PW,112

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT403-1

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1995-11-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Logic IC Type:

    BUFFER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    6

  • Number of Inputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    130 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

74HC4050PW,112 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HC4050PW,112 is 2V to 6V.
  • The 74HC4050PW,112 is a general-purpose buffer/line driver, and its frequency response is limited to around 30-40 MHz. For high-frequency applications, a specialized high-speed buffer or line driver may be more suitable.
  • To ensure signal integrity, use proper PCB layout techniques, such as minimizing trace lengths, using ground planes, and avoiding signal routing near noise sources. Additionally, consider using termination resistors and/or series resistors to reduce signal reflections.
  • While the 74HC4050PW,112 can be used as a level shifter, it's not the most suitable device for this purpose. The device is primarily designed as a buffer/line driver, and its voltage translation capabilities are limited. For level shifting, consider using a dedicated level shifter IC or a voltage translator.
  • The maximum current that the 74HC4050PW,112 can sink or source is 25 mA per output pin. However, it's recommended to limit the current to 10-15 mA per pin to ensure reliable operation and minimize power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC4050PW,112 Overview

Use the download button to access the 74HC4050PW,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC4, or try a keyword search, such as Gates

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
