74HC4051D(BJ) - Toshiba

Description: Encoders, Decoders, Multiplexers & Demultiplexers CMOS logic IC series

Download 74HC4051D(BJ) Model

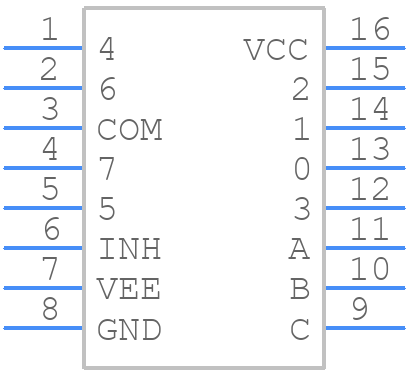

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC4051D(BJ) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16(H=1.75mm)
click to zoom
3D Models
74HC4051D(BJ) - Toshiba  - 3D model - Small Outline Packages - SOIC16(H=1.75mm)
click to zoom

74HC4051D(BJ) Details

  • Manufacturer Part Number:

    74HC4051D(BJ)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.55

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Neg Supply Voltage-Min (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Number of Channels:

    1

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    340 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    95 ns

  • Switch-on Time-Max:

    155 ns

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

74HC4051D(BJ) Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74HC4051D(BJ) is 10 MHz.
  • To ensure correct channel selection, the address inputs (S0, S1, S2) should be driven by a stable signal, and the enable input (E) should be low to enable the device.
  • The maximum voltage rating for the analog signals in the 74HC4051D(BJ) is VCC + 0.5V, but it's recommended to keep the analog signal voltage within the VCC and GND rails to ensure proper operation.
  • Yes, the 74HC4051D(BJ) can be used as a digital multiplexer, but it's not recommended as it's designed for analog signals. For digital multiplexing, a digital multiplexer like the 74HC151 or 74HC251 is more suitable.
  • The 74HC4051D(BJ) does not have a built-in power-on reset. It's recommended to add an external power-on reset circuit or use a microcontroller to control the device's enable input (E) to ensure proper initialization.
