74HC4052D(BJ) - Toshiba

Description: 2 Circuit IC Switch 4:1 130Ohm 16-SOIC

Download 74HC4052D(BJ) Model
Schematic

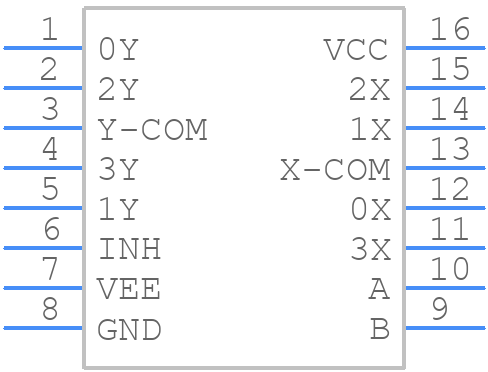

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC4052D(BJ) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16(H=1.75mm)
click to zoom
3D Models
74HC4052D(BJ) - Toshiba  - 3D model - Small Outline Packages - SOIC16(H=1.75mm)
click to zoom

74HC4052D(BJ) Details

  • Manufacturer Part Number:

    74HC4052D(BJ)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.58

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Neg Supply Voltage-Min (Vsup):

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -4.5 V

  • Number of Channels:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    340 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    95 ns

  • Switch-on Time-Max:

    155 ns

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

74HC4052D(BJ) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HC4052D(BJ) is 2V to 6V, with a typical voltage of 5V.
  • To ensure the analog switches are properly turned on and off, make sure to apply a valid logic level to the control inputs (S1 and S2) and provide a valid analog signal to the input pins (1A-4A and 1B-4B).
  • The maximum frequency of operation for the 74HC4052D(BJ) is typically 10 MHz, but it can vary depending on the specific application and operating conditions.
  • To minimize power consumption, ensure that the device is operated within the recommended voltage range, and consider using a lower voltage supply if possible. Additionally, consider using a power-down mode or shutting off the device when not in use.
  • The maximum current rating for the analog switches is typically 25 mA per switch, but it's recommended to check the datasheet for specific current ratings and to ensure that the device is operated within the recommended operating conditions.
