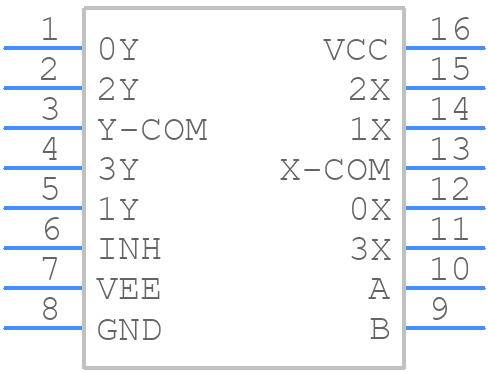

74HC4052D - Toshiba

Description: CMOS IC Dual Analog MUX/DEMUX SOIC16

Download 74HC4052D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC4052D - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOIC16(H=1.75mm)
click to zoom
3D Models
74HC4052D - Toshiba  - 3D model - Small Outline Packages - SOIC16(H=1.75mm)
click to zoom

74HC4052D Details

  • Manufacturer Part Number:

    74HC4052D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-16

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2016-05-24

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

74HC4052D Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74HC4052D is 10 MHz.
  • To ensure proper switching, the control input (S) should be driven with a logic level signal (VCC or GND) and the analog signal should be within the specified voltage range (VCC to VEE).
  • The maximum voltage rating for the analog signals is VCC + 0.5V to VEE - 0.5V.
  • To minimize power consumption in standby mode, ensure that the control input (S) is driven low (GND) and the analog signals are within the specified voltage range.
  • The typical on-resistance of the analog switches is around 50 ohms.
