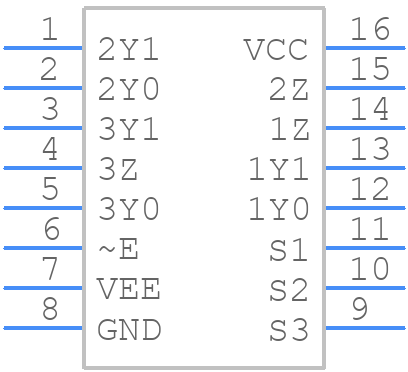

74HC4053D - Nexperia

74HC4053D Details

• Manufacturer Part Number:

  74HC4053D

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-16

• Country Of Origin:

  Mainland China, Thailand

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  1991-01-01

• Manufacturer:

  Nexperia

• YTEOL:

  6.79

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  10.2 mm

• Moisture Sensitivity Level:

  1

• Normal Position:

  NO

• Number of Channels:

  1

• Number of Functions:

  3

• Number of Terminals:

  16

• Off-state Isolation-Nom:

  50 dB

• On-state Resistance Match-Nom:

  8 Ω

• On-state Resistance-Max (Ron):

  160 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.75 mm

• Signal Current-Max:

  0.025 A

• Supply Current-Max (Isup):

  50 mA

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  6 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  36 ns

• Switch-on Time-Max:

  37 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.9 mm
