74HC4053PW - Nexperia

Description: 74HC4053PW, Multiplexer/Demultiplexer Triple 2:1, 5V, 16-Pin, TSSOP

Download 74HC4053PW Model

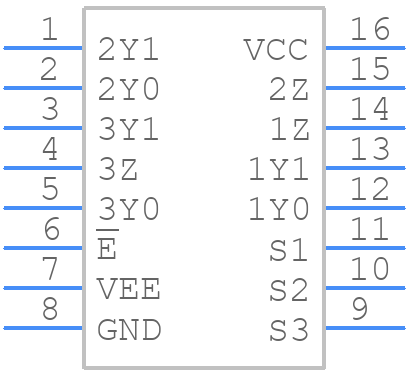

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC4053PW - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP
click to zoom
3D Models
74HC4053PW - Nexperia  - 3D model - Small Outline Packages - TSSOP
click to zoom

74HC4053PW Details

  • Manufacturer Part Number:

    74HC4053PW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    1991-01-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    6.79

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    3

  • Number of Terminals:

    16

  • Off-state Isolation-Nom:

    50 dB

  • On-state Resistance Match-Nom:

    8 Ω

  • On-state Resistance-Max (Ron):

    160 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Signal Current-Max:

    0.025 A

  • Supply Current-Max (Isup):

    50 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    36 ns

  • Switch-on Time-Max:

    37 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

74HC4053PW Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the 74HC4053PW is typically around 10 MHz, but it can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and perform simulations to determine the maximum frequency for a specific design.
  • To ensure signal integrity, it's essential to consider the impedance matching, signal attenuation, and crosstalk between channels. Use a buffer amplifier if necessary, and consider adding termination resistors to minimize signal reflections. Additionally, keep the signal traces short and use a ground plane to reduce noise and crosstalk.
  • Yes, the 74HC4053PW can be used as a digital multiplexer, but it's essential to consider the voltage levels and current requirements of the digital signals. Ensure that the input signals are within the recommended voltage range (VCC to GND) and that the output current does not exceed the maximum rating (typically 25 mA).
  • The enable input (E) is an active-low input, which means it should be pulled low to enable the multiplexer. When E is high, the multiplexer is disabled, and the output is in a high-impedance state. Ensure that the enable input is properly driven and decoupled to prevent unwanted switching.
  • The power consumption of the 74HC4053PW depends on the operating frequency, supply voltage, and load conditions. According to the datasheet, the typical quiescent current is around 10 μA, and the dynamic current is around 10 mA at 10 MHz. Consult the datasheet for more detailed information and perform power calculations for your specific application.
