Part Image

74HC4060D - Nexperia

Description: 14-stage binary ripple counter with oscillator

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

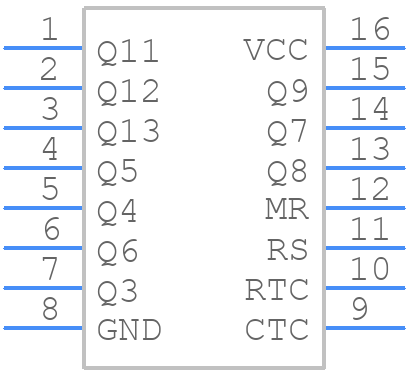

74HC4060D - Nexperia PCB footprint - Other - Other - SOIC127P600X175-16N
click to zoom
  • Datasheet
  • Stock & Prices $ Check Stock & Prices
  • Part Number 74HC4060D
  • Manufacturer Nexperia
  • Pin Count 16
  • Part Category Integrated Circuit
  • Package Category Other
  • Footprint Name Other - SOIC127P600X175-16N
  • Released Date Jan 12, 2017
  • Pinout / Pin List Click Here (Member Only)

74HC4060D Details

  • Manufacturer Part Number:

    74HC4060D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active
