74HC4066BZZ - Nexperia

Description: Plastic, leadless dual in-line compatible thermal enhanced extreme thin quad flat package; no leads; 14 terminals , 45Ω , 5V , -40°C to +125°C

Download 74HC4066BZZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

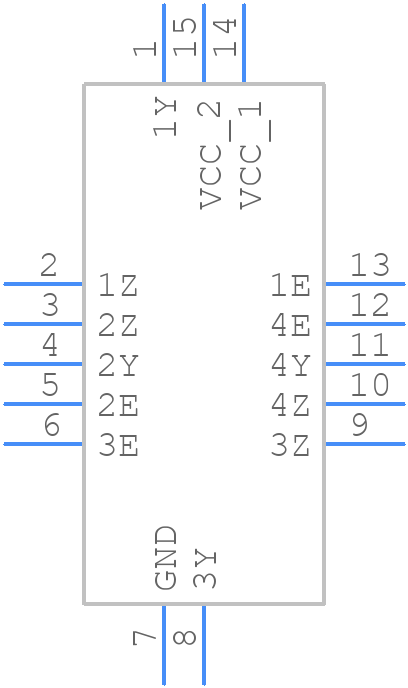

74HC4066BZZ - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HC4066BZZ - Nexperia PCB footprint - Other - Other - SOT8014-1
click to zoom
3D Models
74HC4066BZZ - Nexperia - 3D model - Other - SOT8014-1
click to zoom

74HC4066BZZ Details

  • Manufacturer Part Number:

    74HC4066BZZ

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • Analog IC - Other Type:

    SPST

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    40

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC4066BZZ Overview

Use the download button to access the 74HC4066BZZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC4, or try a keyword search, such as Multiplexers or Switches
