74HC4066D - Toshiba

Description: Encoders, Decoders, Multiplexers & Demultiplexers CMOS Logic IC 500mW 2.0-6.0V

Download 74HC4066D Model

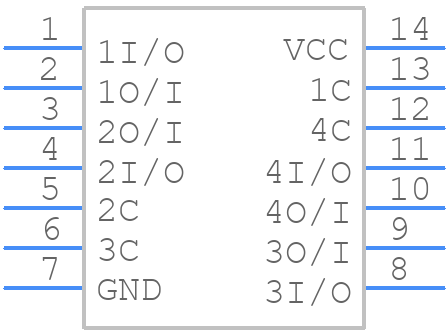

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC4066D - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - 74HC04D
click to zoom
3D Models
74HC4066D - Toshiba  - 3D model - Small Outline Packages - 74HC04D
click to zoom

74HC4066D Details

  • Manufacturer Part Number:

    74HC4066D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SOIC-14

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    3

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    8.95 mm

  • Number of Channels:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Off-state Isolation-Nom:

    60 dB

  • On-state Resistance Match-Nom:

    10 Ω

  • On-state Resistance-Max (Ron):

    220 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.025 A

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    145 ns

  • Switch-on Time-Max:

    125 ns

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

74HC4066D Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the 74HC4066D is typically around 10 MHz, but it can vary depending on the specific application and operating conditions.
  • To ensure signal integrity, use proper PCB layout techniques, such as keeping signal traces short and away from noise sources, using ground planes, and adding decoupling capacitors near the device.
  • The recommended power-on sequence is to apply VCC first, followed by the input signals. This helps prevent unwanted switching during power-up.
  • Yes, the 74HC4066D is compatible with 5V systems, but ensure that the input signals do not exceed the maximum rating of 7V.
  • Ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device near its maximum temperature rating of 125°C.
