74HC423D-Q100J footprint, schematic symbol and 3D model by Nexperia

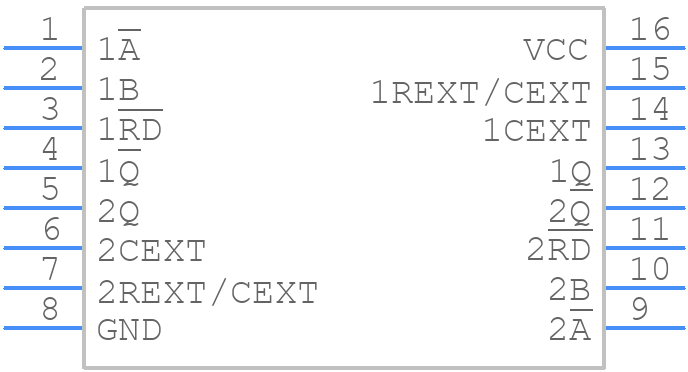

Symbol

click to zoom

PCB Footprints

74HC423D-Q100J - Nexperia PCB footprint - Other - Other - 74HC423D-Q100J

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 74HC423D-Q100J
Part Number 74HC423D-Q100J
Manufacturer Nexperia
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 74HC423D-Q100J
Released Date Jan 25, 2024
Last Modified Date Feb 7, 2024 12:03 AM UTC
Pinout / Pin List Click Here (Member Only)

74HC423D-Q100J Details

Manufacturer Part Number:
74HC423D-Q100J
Rohs Code:
Yes
Part Life Cycle Code:
Active
HTS Code:
8542.39.00.60
Manufacturer:
Nexperia
Logic IC Type:
MONOSTABLE MULTIVIBRATOR
Moisture Sensitivity Level:
1
Peak Reflow Temperature (Cel):
260
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Time@Peak Reflow Temperature-Max (s):
40

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

74HC423D-Q100J Overview

Use the download button to access the 74HC423D-Q100J schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 74HC4, or try a keyword search, such as Prescaler/Multivibrators
