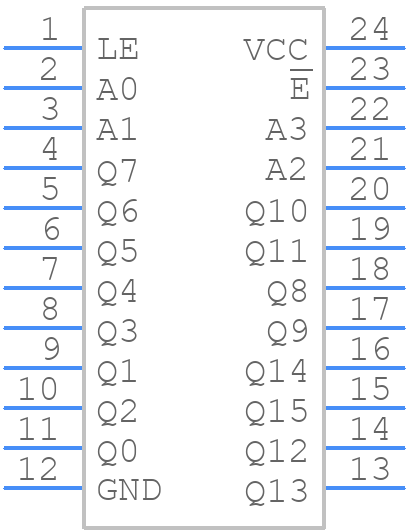

74HC4514DB,118 - Nexperia

74HC4514DB,118 Details

• Manufacturer Part Number:

  74HC4514DB,118

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP2

• Package Description:

  SSOP-24

• Pin Count:

  24

• Manufacturer Package Code:

  SOT340-1

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2017-02-01

• Manufacturer:

  Nexperia

• YTEOL:

  0

• Additional Feature:

  ADDRESS LATCHES

• Family:

  HC/UH

• Input Conditioning:

  LATCHED

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e4

• Length:

  8.2 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  4-LINE TO 16-LINE DECODER

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Prop. Delay@Nom-Sup:

  69 ns

• Propagation Delay (tpd):

  345 ns

• Seated Height-Max:

  2 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5.3 mm
