74HC4514N - Nexperia

Description: Description: Encoders, Decoders, Multiplexers & Demultiplexers 4-16 DECODER/MUX W/LATCHES

Download 74HC4514N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

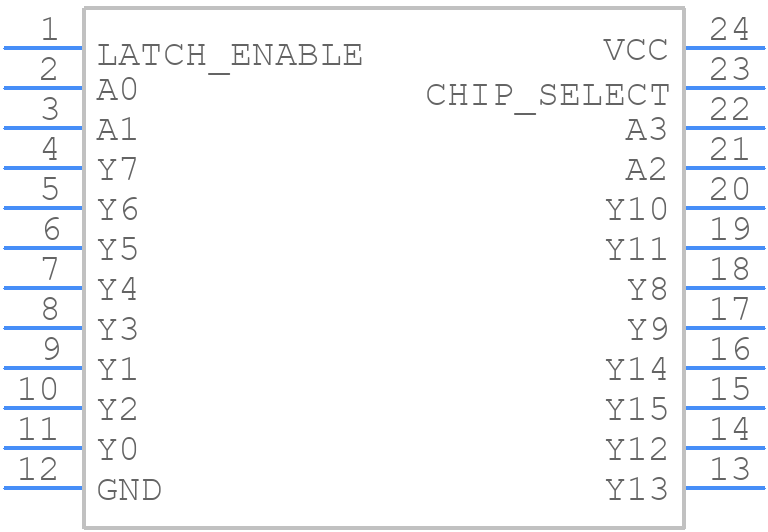

74HC4514N - Nexperia - PCB symbol
click to zoom
PCB Footprints

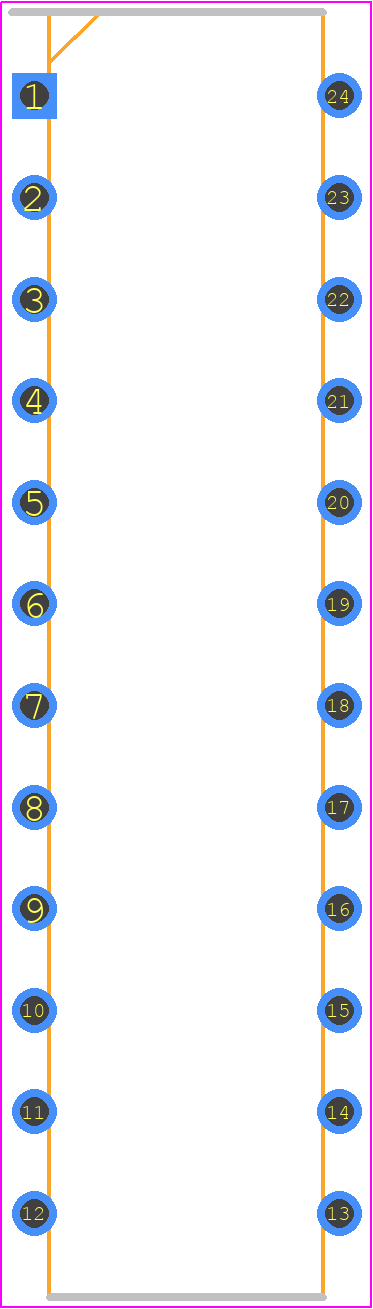

74HC4514N - Nexperia PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N SUFFIX PLASTIC PACKAGE CASE 724–03 ISSUE D
click to zoom
3D Models
74HC4514N - Nexperia - 3D model - Dual-In-Line Packages - N SUFFIX PLASTIC PACKAGE CASE 724–03 ISSUE D
click to zoom

74HC4514N Details

  • Manufacturer Part Number:

    74HC4514N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    HC/UH

  • Input Conditioning:

    LATCHED

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    4-LINE TO 16-LINE DECODER

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Prop. Delay@Nom-Sup:

    69 ns

  • Propagation Delay (tpd):

    345 ns

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

74HC4514N Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the 74HC4514N is 25 MHz, but it can vary depending on the supply voltage and load conditions.
  • To ensure proper power supply, connect VCC to a stable 2V to 6V power source, and GND to a solid ground plane. Decouple the power supply with a 100nF capacitor to reduce noise and ensure reliable operation.
  • The 74HC4514N can sink or source up to 25mA per output pin, but the total current should not exceed 100mA to prevent overheating and ensure reliable operation.
  • Unused inputs should be tied to VCC or GND through a 1kΩ resistor to prevent floating inputs and ensure proper operation. This also helps to reduce power consumption and noise.
  • Yes, the 74HC4514N is compatible with 5V logic levels, but it can also operate with 3.3V or lower logic levels. However, the output voltage levels will be dependent on the supply voltage (VCC).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC4514N Overview

Use the download button to access the 74HC4514N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC4, or try a keyword search, such as Decoder/Drivers

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
