74HC4538DB,118 - Nexperia

Description: 74HC4538 - Dual retriggerable precision monostable multivibrator@en-us

Download 74HC4538DB,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

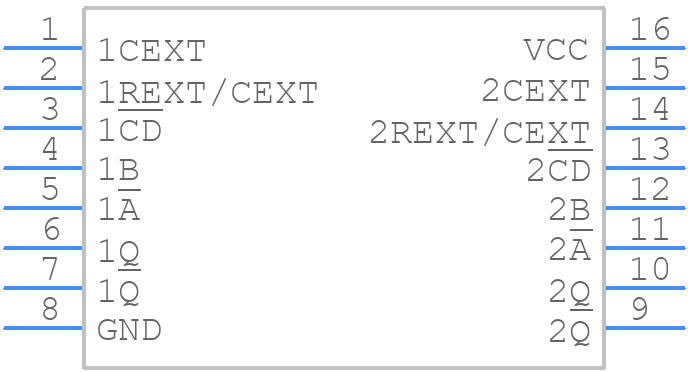

74HC4538DB,118 - Nexperia - PCB symbol
click to zoom
PCB Footprints
74HC4538DB,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT 109-1(SO16)
click to zoom
3D Models
74HC4538DB,118 - Nexperia - 3D model - Small Outline Packages - SOT 109-1(SO16)
click to zoom

74HC4538DB,118 Details

  • Manufacturer Part Number:

    74HC4538DB,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP1

  • Package Description:

    PLASTIC, SSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    SOT338-1

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Additional Feature:

    RETRIGGERABLE

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    6.2 mm

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    80 ns

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

74HC4538DB,118 Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the 74HC4538DB,118 is 30 MHz, as specified in the datasheet. However, it's recommended to derate the frequency based on the capacitive load and operating conditions to ensure reliable operation.
  • It's recommended to power up the VCC pin before the input signals and power down the VCC pin after the input signals to prevent unwanted latch-up or damage to the device. A power-up/down sequence of VCC > inputs > outputs is recommended.
  • The recommended operating voltage range for the 74HC4538DB,118 is 2 V to 6 V, with a typical operating voltage of 5 V. Operating the device outside this range may affect its performance, reliability, or even cause damage.
  • To prevent signal reflections, it's recommended to terminate the output pins with a suitable load impedance, such as a 50-ohm resistor, and to use a transmission line with a characteristic impedance matching the output impedance of the device.
  • The maximum current that can be sourced or sunk by the 74HC4538DB,118 is 25 mA per output pin, with a total current limit of 100 mA for all output pins combined. Exceeding these limits may cause damage to the device or affect its reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC4538DB,118 Overview

Use the download button to access the 74HC4538DB,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC4, or try a keyword search, such as Prescaler/Multivibrators
