74HC541D(BJ) - Toshiba

Description: TOSHIBA - 74HC541D(BJ) - Buffer, Non Inverting, 74HC, SOIC-20, 2 V to 6V

Download 74HC541D(BJ) Model

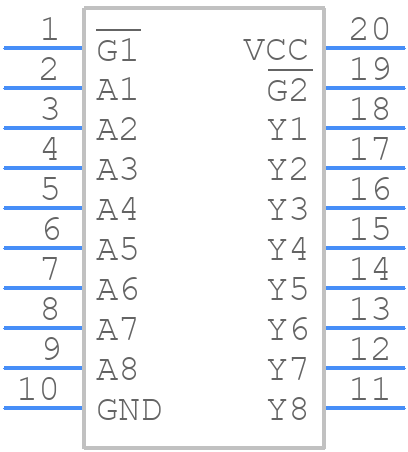

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC541D(BJ) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOIC20_2022
click to zoom
3D Models
74HC541D(BJ) - Toshiba  - 3D model - Small Outline Packages - SOIC20_2022
click to zoom

74HC541D(BJ) Details

  • Manufacturer Part Number:

    74HC541D(BJ)

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-20

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    150 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.0078 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    27 ns

  • Propagation Delay (tpd):

    190 ns

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

74HC541D(BJ) Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HC541D(BJ) is 2.0V to 5.5V.
  • Yes, the 74HC541D(BJ) is compatible with both 3.3V and 5V systems, making it a versatile component for various applications.
  • The maximum clock frequency that the 74HC541D(BJ) can handle is 100 MHz.
  • Yes, the 74HC541D(BJ) has built-in input hysteresis to improve noise immunity and reduce oscillations.
  • Yes, the 74HC541D(BJ) is suitable for high-speed applications due to its fast propagation delay time of 10 ns (typical) and high output current capability.
