74HC541D - Toshiba

Description: Buffers & Line Drivers Pb-F CMOS LOGIC IC SERIES SOIC14 Inverter Gate

Download 74HC541D Model

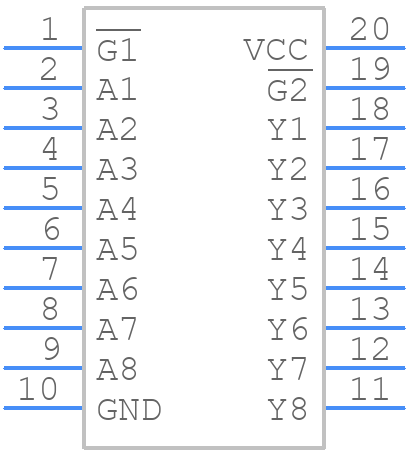

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC541D - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SOIC20
click to zoom
3D Models
74HC541D - Toshiba  - 3D model - Small Outline Packages - SOIC20
click to zoom

74HC541D Details

  • Manufacturer Part Number:

    74HC541D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-20

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-05-24

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    HC

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.8 mm

  • Load Capacitance (CL):

    150 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.0078 A

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    27 ns

  • Propagation Delay (tpd):

    190 ns

  • Seated Height-Max:

    2.5 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

74HC541D Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the 74HC541D is 2.0V to 5.5V.
  • To ensure proper power supply, connect VCC to a stable voltage source and GND to a reliable ground connection. Decouple the power supply with a 0.1uF capacitor to reduce noise.
  • The maximum frequency of operation for the 74HC541D is 100 MHz.
  • During power-up and power-down, ensure that all input pins are held at a valid logic level to prevent unwanted output states. Use pull-up or pull-down resistors if necessary.
  • The maximum current that the 74HC541D can sink or source is 25mA per pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC541D Overview

Use the download button to access the 74HC541D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC5, or try a keyword search, such as Bus Driver/Transceivers

Parts related to 74HC541D
