The maximum clock frequency of the 74HC573D is 35 MHz, but it can vary depending on the operating conditions and the quality of the clock signal.
To ensure that the output is not corrupted during asynchronous inputs, it is recommended to use synchronous inputs or to add a small delay (e.g., using a capacitor and a resistor) between the input and the clock signal.
The recommended power-on sequence for the 74HC573D is to apply power to the VCC pin first, followed by the input signals, and then the clock signal. This helps to prevent unwanted output states during power-up.
Yes, the 74HC573D is compatible with 5V systems, but it is recommended to use a voltage regulator to ensure a stable 5V supply. Additionally, the input and output voltage levels should be within the recommended operating range.
The output enable (OE) pin should be connected to a logic low (GND) to enable the output, and to a logic high (VCC) to disable the output. Leaving the OE pin floating can cause unpredictable behavior.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74HC573D Overview

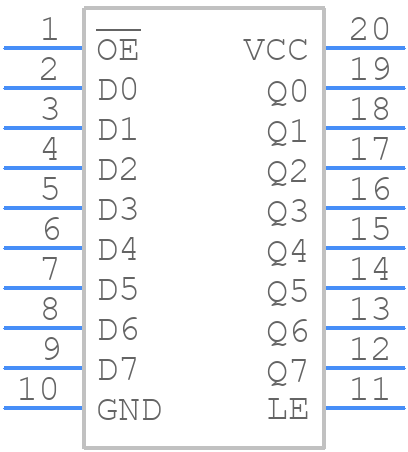

Use the download button to access the 74HC573D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC5,
or try a keyword search, such as Bus Driver/Transceivers
