Part Image

74HC573PW,118 - Nexperia

Description: NEXPERIA - 74HC573PW,118 - Latch, HC Family, 74HC573, D Type Transparent, Tri State Non Inverted, 35 mA, TSSOP

Download 74HC573PW,118 Model

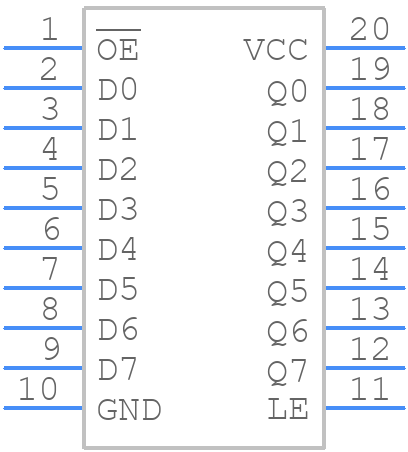

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC573PW,118 - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP20: plastic thin shrink small outline package; 20 leads; body width 4.4 mm
click to zoom
3D Models
74HC573PW,118 - Nexperia  - 3D model - Small Outline Packages - TSSOP20: plastic thin shrink small outline package; 20 leads; body width 4.4 mm
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for 74HC573PW,118
  • Part Number 74HC573PW,118
  • Manufacturer Nexperia
  • Pin Count 20
  • Part Category Integrated Circuit
  • Package Category Small Outline Packages
  • Footprint Name Small Outline Packages - TSSOP20: plastic thin shrink small outline package; 20 leads; body width 4.4 mm
  • Released Date Jun 24, 2022
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

74HC573PW,118 Details

  • Manufacturer Part Number:

    74HC573PW,118

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP2

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT360-1

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    5.35

  • Additional Feature:

    BROADSIDE VERSION OF 373

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Logic IC Type:

    BUS DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    225 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

74HC573PW,118 Overview

Use the download button to access the 74HC573PW,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC5, or try a keyword search, such as Bus Driver/Transceivers

Parts related to 74HC573PW,118

Showing 0 results

74HC573PW,118 Alternates

Showing results

Image Part Number Model
Part Image 74HC573PW-Q100,118 Nexperia

74HC573-Q100; 74HCT573-Q100 - Octal D-type transparent latch; 3-state@en-us TSSOP2 20-Pin
