74HC595BZX - Nexperia

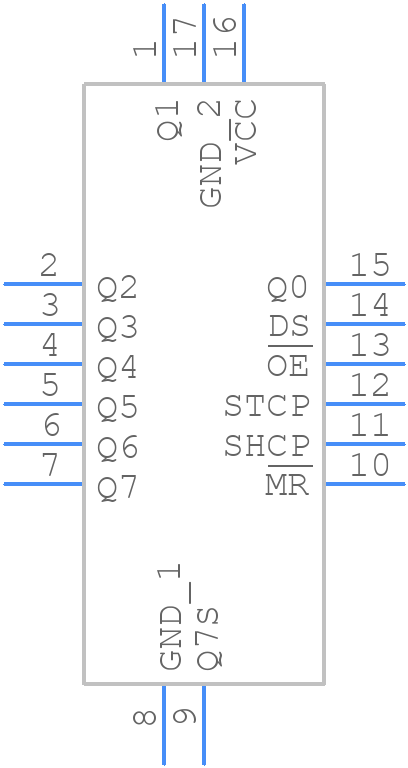

74HC595BZX Details

• Manufacturer Part Number:

  74HC595BZX

• Part Life Cycle Code:

  Active

• Package Description:

  DHXQFN-16

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Nexperia

• YTEOL:

  5

• Count Direction:

  RIGHT

• Family:

  HC/UH

• JESD-30 Code:

  R-PQCC-N16

• Length:

  2.4 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  SERIAL IN PARALLEL OUT

• Max Frequency@Nom-Sup:

  20000000 Hz

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  3-STATE

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HXQCCN

• Package Equivalence Code:

  LCC16,.08X.1,16

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, EXTREMELY THIN PROFILE

• Packing Method:

  TR

• Power Supply Current-Max (ICC):

  0.16 mA

• Propagation Delay (tpd):

  240 ns

• Seated Height-Max:

  0.48 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Trigger Type:

  POSITIVE EDGE

• Width:

  2 mm

• fmax-Min:

  4 MHz
