74HC595D(BJ) - Toshiba

Description: Logic Gates CMOS 8-Bit Shift Register/Latch

Download 74HC595D(BJ) Model
Schematic

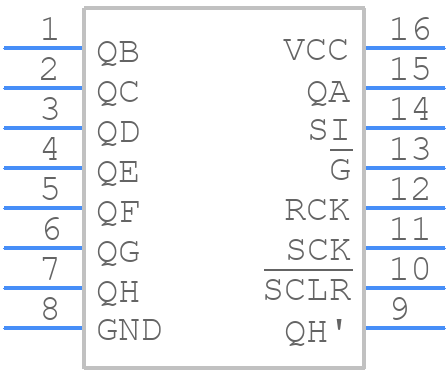

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC595D(BJ) - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - P-SOP16-0410-1.27-005
click to zoom
3D Models
74HC595D(BJ) - Toshiba  - 3D model - Small Outline Packages - P-SOP16-0410-1.27-005
click to zoom

74HC595D(BJ) Details

  • Manufacturer Part Number:

    74HC595D(BJ)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.35

  • Additional Feature:

    (RCK-QN) PROPAGATION DELAY TIME NOT CONSIDERED

  • Count Direction:

    RIGHT

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    20000000 Hz

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Supply Current-Max (ICC):

    0.16 mA

  • Propagation Delay (tpd):

    240 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    24 MHz

74HC595D(BJ) Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the 74HC595D(BJ) is 25 MHz.
  • Yes, the 74HC595D(BJ) can operate with a power supply voltage of 2.0 to 6.0 V, making it compatible with 5V systems.
  • To ensure that the output pins are in a high-impedance state during power-up, connect the OE (Output Enable) pin to VCC through a pull-up resistor.
  • The output pins of the 74HC595D(BJ) can sink or source up to 25 mA of current.
  • The 74HC595D(BJ) is rated for operation from -40°C to 125°C, making it suitable for use in high-temperature environments.
