74HC595DG - onsemi

Description: 8-Bit Serial-Input/Serial or Parallel-Output Shift Register with Latched 3-State Outputs

Download 74HC595DG Model

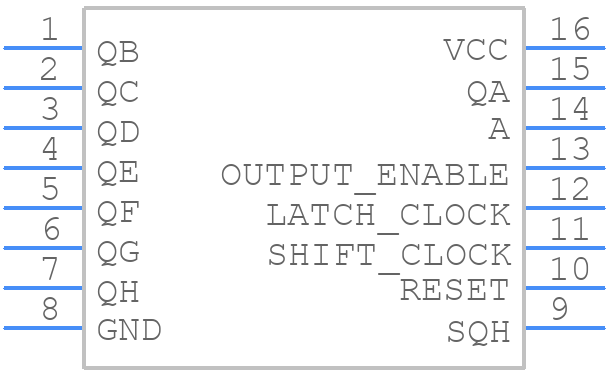

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
74HC595DG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom
3D Models
74HC595DG - onsemi  - 3D model - Small Outline Packages - SOIC-16 CASE751B-05
click to zoom

74HC595DG Details

  • Manufacturer Part Number:

    74HC595DG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP, SOP16,.25

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Count Direction:

    RIGHT

  • Family:

    HC/UH

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Logic IC Type:

    SERIAL IN PARALLEL OUT

  • Max Frequency@Nom-Sup:

    4000000 Hz

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.04 mA

  • Propagation Delay (tpd):

    210 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trigger Type:

    POSITIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    24 MHz

74HC595DG Frequently Asked Questions (FAQs)

  • The maximum clock frequency for the 74HC595DG is 25 MHz, but it can vary depending on the operating voltage and temperature.
  • To ensure that the output pins are in a known state during power-up, you can use an external pull-up or pull-down resistor on the OE (output enable) pin. This will ensure that the outputs are in a known state until the chip is fully powered up and configured.
  • The 74HC595DG can sink or source up to 25 mA per output pin, but the total current drawn from the VCC pin should not exceed 70 mA.
  • The asynchronous reset (SRCLR) input should be tied to VCC through a pull-up resistor to prevent accidental resets. When SRCLR is low, all outputs are reset to a low state.
  • The propagation delay time for the 74HC595DG is typically around 10-15 ns, but this can vary depending on the operating voltage and temperature.
