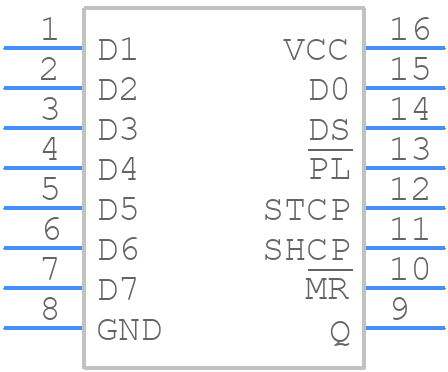

74HC597DB,118 - Nexperia

74HC597DB,118 Details

• Manufacturer Part Number:

  74HC597DB,118

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP1

• Package Description:

  SSOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  SOT338-1

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Date Of Intro:

  1995-11-01

• Manufacturer:

  Nexperia

• YTEOL:

  0

• Count Direction:

  RIGHT

• Family:

  HC/UH

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  6.2 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  PARALLEL IN SERIAL OUT

• Max Frequency@Nom-Sup:

  20000000 Hz

• Moisture Sensitivity Level:

  1

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Packing Method:

  TR, 13 INCH

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  50 mA

• Propagation Delay (tpd):

  265 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Trigger Type:

  POSITIVE EDGE

• Width:

  5.3 mm

• fmax-Min:

  24 MHz
