The recommended operating voltage range for the 74HC74N is 2V to 6V, with a typical voltage of 5V.
To ensure proper initialization, connect the preset (PRE) and clear (CLR) inputs to VCC or GND through a pull-up or pull-down resistor, respectively. This will ensure that the flip-flops are set to a known state on power-up.
The maximum clock frequency that the 74HC74N can handle is 25 MHz, but this can vary depending on the operating voltage and load capacitance.
Yes, the 74HC74N can be used in a 3.3V system, but the output voltage will be limited to around 3.1V due to the internal voltage drop. Additionally, the input voltage thresholds may be affected, so ensure that the input signals meet the recommended voltage levels.
The preset and clear inputs are asynchronous, meaning they can be triggered at any time, regardless of the clock signal. To avoid unintended behavior, ensure that these inputs are synchronized with the clock signal or use them only during initialization or reset sequences.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74HC74N Overview

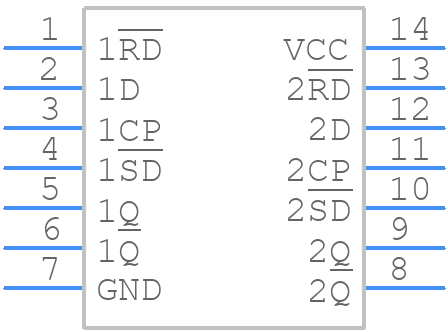

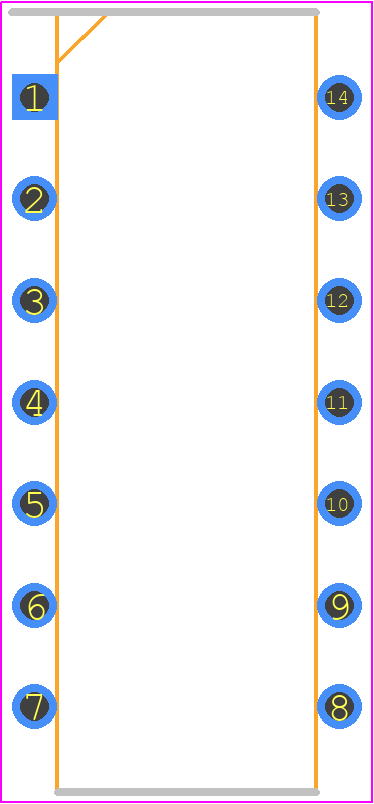

Use the download button to access the 74HC74N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HC7,
or try a keyword search, such as FF/Latches
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
