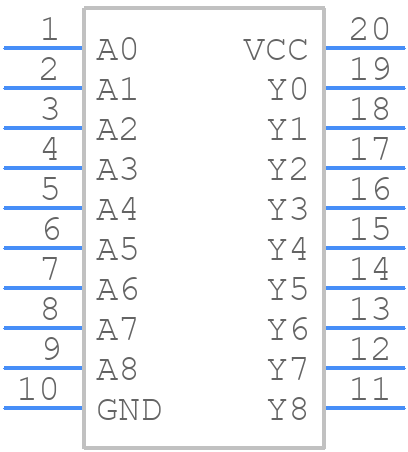

74HC9115D-Q100J - Nexperia

74HC9115D-Q100J Details

• Manufacturer Part Number:

  74HC9115D-Q100J

• Part Life Cycle Code:

  Active

• Package Description:

  SOP-20

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Nexperia

• YTEOL:

  5

• Family:

  HC/UH

• JESD-30 Code:

  R-PDSO-G20

• Length:

  12.8 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUFFER

• Max I(ol):

  0.0052 A

• Moisture Sensitivity Level:

  1

• Number of Functions:

  9

• Number of Inputs:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  250

• Power Supply Current-Max (ICC):

  0.16 mA

• Prop. Delay@Nom-Sup:

  33 ns

• Propagation Delay (tpd):

  165 ns

• Schmitt Trigger:

  YES

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  2.65 mm

• Supply Voltage-Max (Vsup):

  6 V

• Supply Voltage-Min (Vsup):

  2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7.5 mm
