74HCS14BQX footprint, schematic symbol and 3D model by Nexperia

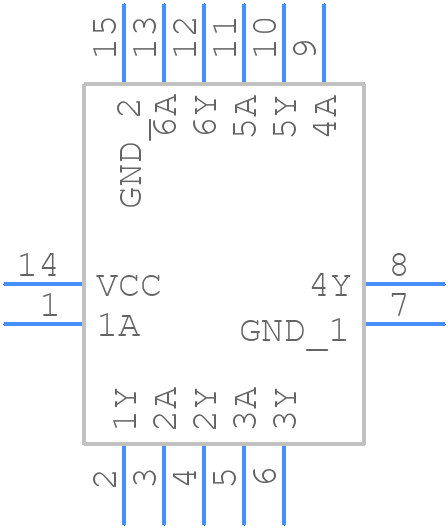

Symbol

click to zoom

PCB Footprints

74HCS14BQX - Nexperia PCB footprint - Other - Other - SOT762-1_2026-1.5

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 74HCS14BQX
Part Number 74HCS14BQX
Manufacturer Nexperia
Pin Count 15
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOT762-1_2026-1.5
Released Date Jun 3, 2026
Last Modified Date Jun 3, 2026 1:37 PM UTC
Pinout / Pin List Click Here (Member Only)

74HCS14BQX Details

Manufacturer Part Number:
74HCS14BQX
Manufacturer:
Nexperia

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

74HCS14BQX Overview

Use the download button to access the 74HCS14BQX schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 74HCS, or try a keyword search, such as Gates
