74HCT08N - Nexperia

Description: Quad 2-input AND gate

Download 74HCT08N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
74HCT08N - Nexperia - PCB symbol
click to zoom
PCB Footprints

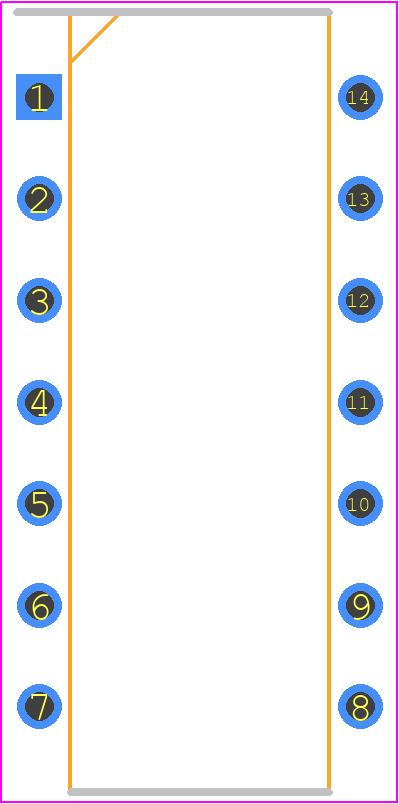

74HCT08N - Nexperia PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - SOT27-1 (DIP14).
click to zoom
3D Models
74HCT08N - Nexperia - 3D model - Dual-In-Line Packages - SOT27-1 (DIP14).
click to zoom

74HCT08N Details

  • Manufacturer Part Number:

    74HCT08N

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-14

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Family:

    HCT

  • JESD-30 Code:

    R-PDIP-T14

  • Length:

    19.025 mm

  • Logic IC Type:

    AND GATE

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Propagation Delay (tpd):

    36 ns

  • Seated Height-Max:

    4.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

74HCT08N Frequently Asked Questions (FAQs)

  • The maximum frequency of operation for the 74HCT08N is typically around 30-40 MHz, but this can vary depending on the specific application, supply voltage, and output load.
  • To ensure proper operation, the 74HCT08N should be powered from a stable 5V supply with a minimum of 10uF decoupling capacitor between VCC and GND, placed as close to the device as possible.
  • The input voltage threshold for the 74HCT08N is typically around 2.0V for a logic high and 0.8V for a logic low, but this can vary slightly depending on the specific device and operating conditions.
  • While the 74HCT08N is specified for 5V operation, it can typically operate with a 3.3V supply voltage, but the output voltage levels may not be as high, and the noise margin may be reduced.
  • Unused inputs on the 74HCT08N should be tied to a valid logic level (either VCC or GND) to prevent floating inputs and ensure proper device operation.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

74HCT08N Overview

Use the download button to access the 74HCT08N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74HCT, or try a keyword search, such as Gates

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
